The ZKManet2261UM is a 40dBm portable MESH network base station with a bandwidth of up to 82Mbps and supports AES encryption. It is suitable for various usage scenarios and can be installed at fixed points, on mobile vehicles, ships, or unmanned boats. It allows for easy one-click activation without the need for configuration changes, providing stable network connectivity even in long-distance and complex situations.
Features
* High bandwidth up to 82Mbps
* Supports 2.4G/5G dual-band WIFI
* Full IP duplex transparent data transmission
* Flexible networking and rapid deployment
* Rugged three-proof IP66 design
* Compact size and light weight
* Convenient operation and maintenance
* One-click use
| Transmission Characteristics |
| Default Frequencies | 1412MHz-1484MHz (537MHz-609MHz) |
| Channel Bandwidth | 5M/10M/20MHz/40MHz |
| RF Channel | 2T2R |
| Output Power | 40dBm (2x37dBm) |
| WIFI | 2.4G/5.8G WIFI (2x100mw) |
| Modulation Type | DSSS/CCK BPSK/QPSK OFDM BPSK/QPSK/16-QAM/64-QAM |
| Data Rate | Up to 82Mbps |
| Network Capability | 9 hops and no less than 64 nodes |
| Encryption | AES |
| Electrical Characteristics |
| Working Voltage | DC 24V |
| Power Consumption | <60W Average |
| Physical Characteristics |
| Weight | <5kg |
| Dimensions | 320*200*76mm |
| IP Rating | IP66 |
| Storage Temp. | -45ºC~85ºC |
| Working Temp. | -40ºC~70ºC |
| Working Humidity | 5%RH-95%RH (Non-Condensing) |
Dimensions
Panel Description
1- MESH antenna interface-1
2- WIFI antenna interface
3- PTT interface (Mic)
4- GPS/BD antenna interface
5- MESH antenna interface-2
6- LAN interface
7- MESH LED indicator
8- Power push button
9- Battery Indicator (Reserved)
10- Power Input interface (DC 24V)
Topology Diagram
- Star Type

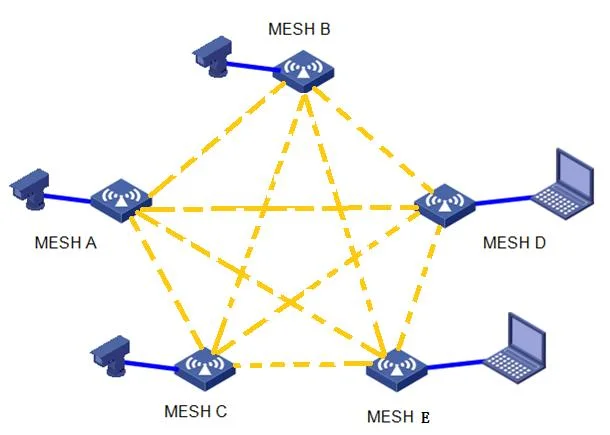

- Mesh Type
- Random Type
