43dBm 2T2R 10-20km Range Transmission AES Encryption LTE Outdoor Base Station Transceiver
The ZKManet7561 is a highly integrated private network base station, mainly composed of baseband processing unit (BBU), remote radio remote unit (RRU) and EPC. It is a miniaturized LTE private network base station specially developed according to the needs of the private network communication market, supports dual-channel antenna configuration, works in the 1.4GHz band (400M/600M/1.4G/1.8G can be customized), supports 5MHz, 10MHz, 20MHz bandwidth. It is especially suitable for providing wireless coverage solutions for various industries in the private network communication market, such as smart cities, intelligent transportation, subways, tunnels, mines, petroleum, ports, armed police, civil air defense, emergency and other environments.
* Highly integrated EPC, BBU and RRU
* Based on TD-SCDMA technology
* MIMO dual-stream beamforming technology
* High safety USIM quintuple authentication and encryption
* Supports GPS/BD
* Rugged IP67
| RF Characteristics |
| System Mode | TDD LTE |
| Frequency | 1447-1467MHz (400M/600M/1.4G/1.8G Customizable) |
| RF Channel | 2T2R |
| Output Power | 2*40dBm |
| 3GPP | Release 9 |
| Sensitivity | ≤-101.5dBm |
| Network Characteristics |
| Authentication | USIM Quintuple Authentication |
| Up/Downlink rate | 40/80Mbps |
| Time Slot Ratio | cfg0,1,2,3 … 10 |
| Maximum Concurrent | 128 |
| Encryption | AES |
| Electrical Characteristics |
| Working Voltage | AC 100-240V |
| Power Consumption | ≤1High Power |
| Physical Characteristics |
| Weight | 15kg |

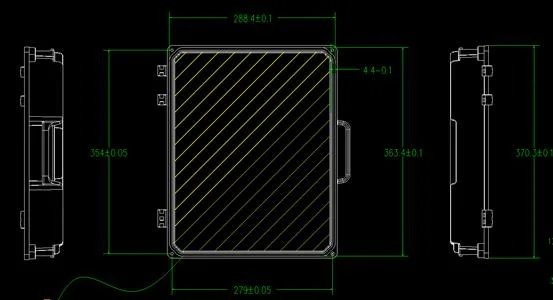

| Dimensions | 370*295*150mm |
| IP Rating | IP66 |
| Storage Temp. | -45ºC~85ºC |
| Working Temp. | -40ºC~75ºC |

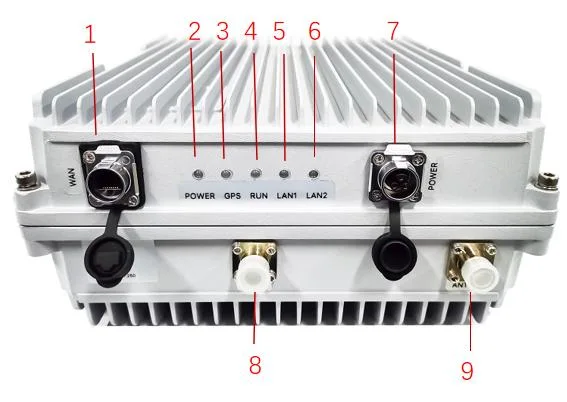

1 LAN Port
2 Power Indicator
3 GPS Indicator
4 Running Indicator
5 LAN1 Indicator
6 LAN 2 Indicator
7 Power Input Port
8 Antenna Interface-Type N
9 Antenna Interface-Type N
