ZKManet2712 is a MESH base station that supports both 1.4G and 5.8G fusion communication. It comes with a WIFI hotspot and can achieve wireless coverage networking of different types such as point-to-multipoint, point-to-point, and MESH network by using directional, omnidirectional, sector antennas. It adopts advanced industrial design concepts such as surge protection/static electricity protection, salt spray corrosion resistance, etc., and can meet the requirements of various complex electromagnetic environments and continuous operation in harsh weather conditions.
* Frequency 1.4GHz+5.8GHz
* High bandwidth point-to-point up to 90MBps
* Full duplex IP transparent transmission
* Flexible networking and rapid deployment
* Rugged IP67
* High safety AES encryption
* Convenient operation and maintenance

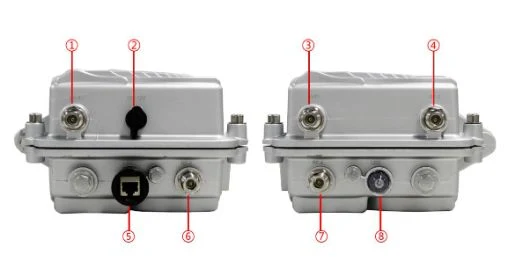

- 1. MESH Antenna Interface -N female
- 2. Power Input Port - DC 12V
- 3. WIFI Antenna Interface (Reserved)
- 4. MESH Antenna Interface -N female
- 5. LAN Interface - RJ45
- 6. Antenna Interface - Reserved
- 7. Antenna Interface - Reserved
- 8. Signal Indicator
| Transmission Characteristics |
| Modulation Type | BPSK/QPSK/16-QAM/64-QAM |
| Frequency | 1.4GHz+5.8GHz |
| RF Channel | 4T4R |
| RF Power Output | 1.4G:4W/5.8G:2W |
| RF Bandwidth | 10/20/40MHz |
| Network Characteristics |
| Network Capacity | 64 nodes |
| Throughput | 90Mbps |
| Encryption | AES (User-defined password) |
| Electrical Characteristics |
| Working Voltage | DC12V |
| Working Current | ≤1A (@12V) |
| Power Consumption | ≤24W |
| Physical Characteristics |
| Weight | 3.2kg |
| Dimensions | 286*216*122mm |
| Working Temp. | -20~+65°C |
| Storage Temp. | -45~+85°C |
| IP Code | IP67 |
