The LKAV-7402 is a highly integrated private network base station, mainly composed of baseband processing unit (BBU), remote radio remote unit (RRU) and EPC. It is a miniaturized LTE private network base station specially developed according to the needs of the private network communication market, supports dual-channel antenna configuration, works in the 1.4GHz band (400M/600M/1.4G/1.8G can be customized), supports 5MHz, 10MHz, 20MHz bandwidth.
* Integrated EPC, BBU and RRU
* Based on TD-SCDMA technology
* Supports MIMO dual-stream beamforming
* High safety USIM quintuple authentication and encryption
* Supports cluster scheduling and video command
* Rugged IP67 housing
* Compact size and light weight
| Model | ZKManet7574S |
| RF Parameters | Working Mode | TDD LTE |
| Modulation | QPSK/16QAM/64QAM |
| Frequency | 1447-1467MHz (400M/600M/
1.4G/1.8G customizable) |
| Bandwidth | 5/10/20MHz |
| RF Channel | 2T2R |
| Output Power | 43dBm |
| 3GPP | Release 9 |
| Sensitivity | ≤-101.5dBm |
| Network Parameters | Authentication | USIM card five-tuple authentication |
| Up/downlink Data Rate | 40/80Mbps |
| Gap Ratio | Support cfg0,1,2,3...10 |
| Concurrent Number | 128(max) |
| Encryption | AES |
| Range | 10-20km |

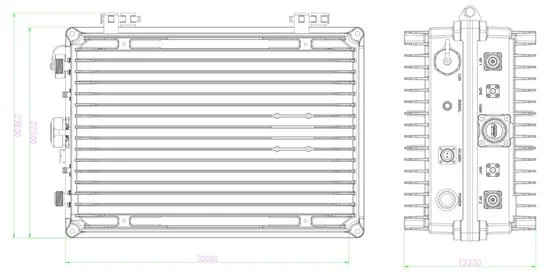

| Physical/Environment | Dimensions | 370*295*150mm |
| Weight | 15kg |
| IP Rating | IP67 |
| Working Temp | -40°C~75°C |
| Electrical Parameters | Power Supply | AC220V |
| Power Consumption | <1High Power |

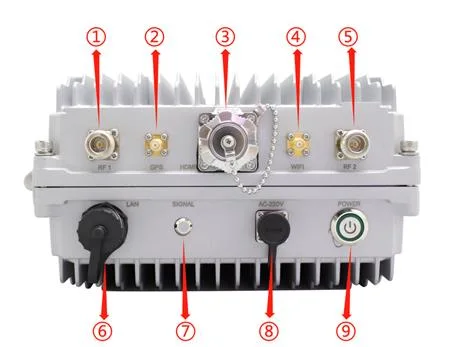

1. MESH antenna interface-1, N-F
2. GPS/BD antenna interface, SMA-F
3. HDMI input interface type A (Optional)
4. WIFI antenna interface-1, SMA-F
5. MESH antenna interface-2, N-F
6. LAN interface, RJ45
7. MESH signal indicator | SNR | Link Quality | Topology Color |
| SNR ≥ 17 | Excellent | Deep Green |
| 12 ≤ SNR < 17 | Good | Light Green |
| 7 ≤ SNR <12 | Fine | Yellow |
| 2 ≤ SNR <7 | Medium | Orange |
| -10 < SNR <2 | Bad | Red |
| SNR = -10 | Disconnected | N/A |
8. Power input port, 3-pin
9. Power push button
