ZKManet2261UM is a high-power MESH network base station which can be applied to multiple usage scenarios. It can be installed at a fixed point, a moving vehicle, a ship or an unmanned ship, etc., anytime, anywhere, one-key startup, no need to configure and change parameters. It can provide stable network at long distance complex situations.
* High bandwidth up to 82Mbps
* Supports 2.4G/5G dual-band WIFI
* Full IP duplex transparent data transmission

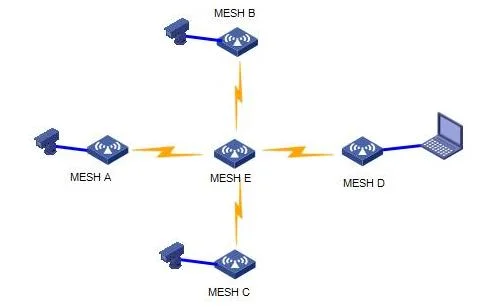

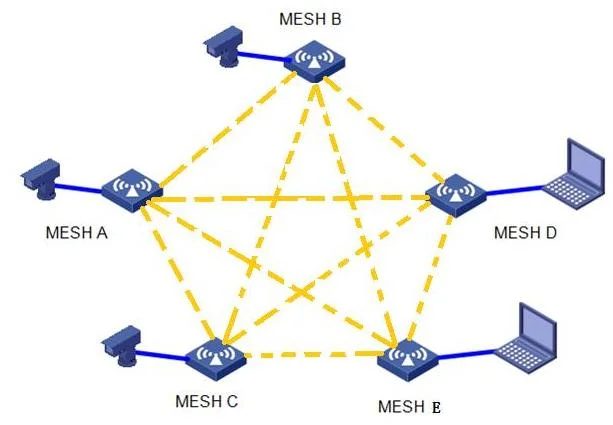

* Flexible networking and rapid deployment
* Rugged IP66
* Compact size and light weight
* Convenient operation and maintenance
* One-click use

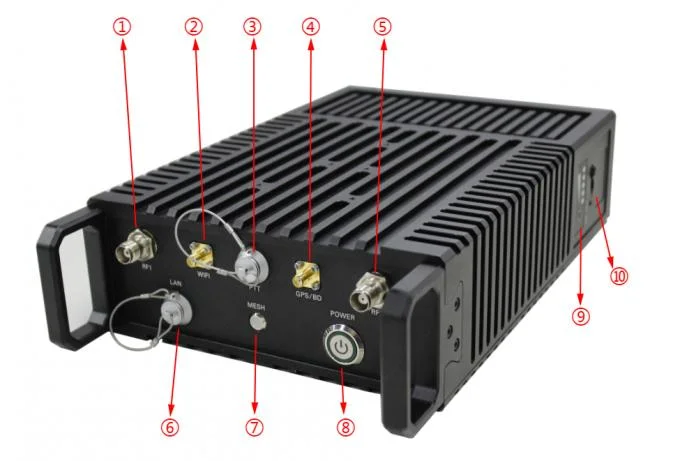

1 MESH antenna interface-1
2 WIFI antenna interface
3 PTT interface (Mic)
4 GPS/BD antenna interface
5 MESH antenna interface-2
6 LAN interface
7 MESH LED indicator
8 Power push button
9 Battery Indicator (Reserved)
10 Power Input interface (DC 24V)
| Transmission Characteristics |
| Default Frequencies | 1412MHz-1484MHz (537MHz-609MHz) |
| Channel Bandwidth | 5M/10M/20MHz/40MHz |
| RF Channel | 2T2R |
| Output Power | 40dBm (2x37dBm) |
| WIFI | 2.4G/5.8G WIFI (2x100mw) |
| Modulation Type | DSSS/CCK BPSK/QPSK OFDM BPSK/QPSK/16-QAM/64-QAM |
| Data Rate | Up to 82Mbps |
| Network Capability | 9 hops and no less than 64 nodes |
| Encryption | AES |
| Electrical Characteristics |
| Working Voltage | DC 24V |
| Power Consumption | <60W Average |
| Physical Characteristics |
| Weight | <5kg |

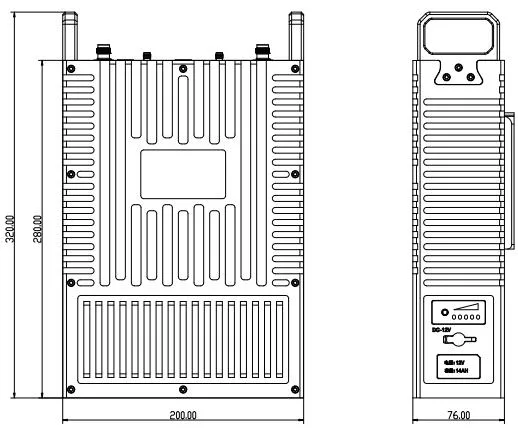

| Dimensions | 320*200*76mm |
| IP Rating | IP66 |
| Storage Temp. | -45ºC~85ºC |
| Working Temp. | -40ºC~70ºC |
| Working Humidity | 5%RH-95%RH (Non-Condensing) |
