The ZKManet4271 is a portable MESH narrowband base station specifically engineered for emergency situations, enabling quick deployment. Constructed with an all-cast aluminum framework that adheres to -grade quality standards, this device is IP67 rated for dust and water resistance, making it suitable for a wide range of challenging field conditions while ensuring robust communication capabilities. It supports rapid deployment through a piggyback method and features self-organizing network co-frequency relaying, with the ability to automatically adjust transmission power based on varying configurations.
-
Flexible digital mode and analog mode switching
-
PDT/DMR multiple working modes
-
Supports up to 8 hops & 32 nodes
-
Easy channel configuration
-
Supports dual-band co-frequency relay
-
Supports 5 types of encryption
-
Supports GPS/Beidou satellite positioning

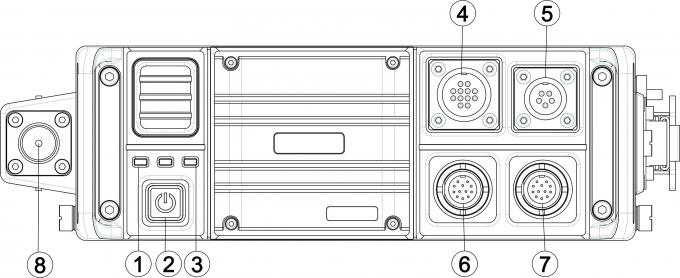

① LED Indicator
② Power Button
③ Network Indicator
④ ACC Accessory Interface
⑤ LAN Interface
⑥ Microphone Interface 1
⑦ Microphone Interface 2
⑧ Antenna Interface

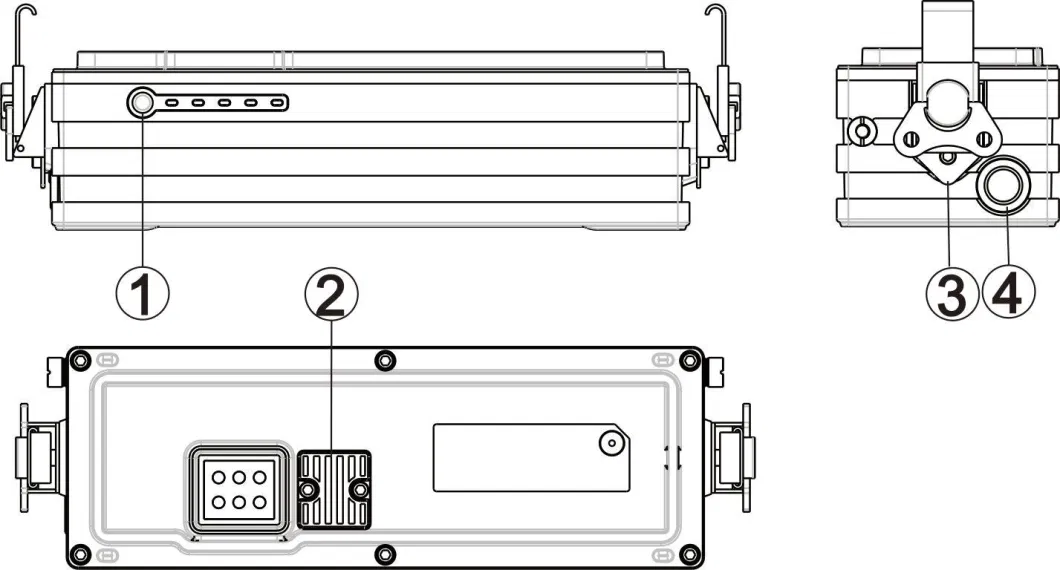

① Battery Level Button
② Fuse
③ Butterfly Buckle
④ Battery Charging Interface
| Item | Parameters |
| Working Band | VHF:136-174MHz, UHF:400-480MHz,
UHF2:450-520MHz, UHF3:350-400MHz |
| Channel Quantity | 3773 |
| Area | Level 1 area: 4, Level 2 area: 1000, Level 3 area: 1000 |
| Channel Step | 12.5KHz/25KHz |
| Working Voltage | 10.8~12.6V |
| Battery Capacity | 16.5Ah |
| Battery Life (5/5/90) | 21.4 Hours |
| Frequency Stability | ±0.5ppm |
| Antenna Impedance | 50Ohm |
| Transmission Range | 50-70km (w/ Tower) |
| Network Capacity | Up to 8 hops and 32 nodes |
| Output Power | 137dBm (Manpack) / 237dBm (Vehicle-borne) |
| 4FSK Modulation | 12.5kHz data only: 7K60FXD
12.5kHz data and voice: 7K60FXE |
| FM Modulation | 12.5 kHz:8K50F3E, 25 kHz:16K0F3E |
| Modulation Limit | ±2.5kHz@12.5kHz, ±5.0kHz@25kHz |
| Emission Spurs | -36dBm<1GHz/-30dBm>1GHz |
| Adjacent Channel Power | ≤-60dB |
| Sensitivity | 3%BER≤0.35µV |
| Intermodulation | 60 dB |
| Adjacent Channel Selectivity | 60 dB |
| Spurious Suppression | 70 dB |
| Block | 90 dB |
| Conducted Radiation | -57dBm |
| GPS Positioning Accuracy | Horizontal≤10m (Good signal conditions) |
| TTFF (First Fix) Cold Start | <1 minute (Good signal conditions) |
| TTFF (First Fix) Hot Start | <10 seconds (Good signal conditions) |
| Working Temp. | -30ºC-+70ºC |
| Storage Temp. | -40ºC-+85ºC |
| Moisture Proof | MIL-STD-810C/D/E/F |
| Shock and Vibration Proof | MIL-STD-810C/D/E/F |
| Dustproof & Waterproof | IP67 |
| Dimensions | 302*218*76mm |
| Weight | ≤5KG (w/ Battery) |
