Rugged COFDM HDMI Wireless Reveiver with Low Power Consumption and 2-8MHz Bandwidth
ZKManet1303R is a wireless image transmission receiver with powerful function and stable performance. With dual antenna reception, TF card and U disk video function, the maximum support 128G storage media, automatic video recording, storage full automatic coverage. High standard HD video output at the same time, HD reception in the case of transmission and reception delay less than 150ms. ZKManet1303R has a small structure and is easy to install, which is widely used in the integration of products with high delay requirements such as drones and unmanned vehicles.
* Supports 300MHz-2.7GHz customizable
* Supports HDMI/CVBS dual video outputs
* Long Range up to 20~30km (LOS)
* Supports TF card & USB video recording
* Low Latency and Low power consumption
| Model | ZKManet1303R |
| RF Parameters | Frequency | 300MHz-2.7GHz (Default 700MHz) |
| Modulation Type | QPSK(4QAM), 16QAM, 64QAM |
| Bandwidth | 2-8MHz |
| Encryption | AES |
| Receiving Sensitivity | -106dBm@2MHz |
| RF Interface | SMA-F |
| Range | 1~3km (ground-to0ground) |
| 20~30km (air-to-ground) |
| Video Parameters | Video Output Interface | HD: HDMI |
| SD: 3.5mm interface |
| Video Output | HD: 1080P@60 |
| SD: 720x480 |
| Video Compression | H.264 |
| Video Memory | TF Card (128G Max) |
| File System: FAT32 |

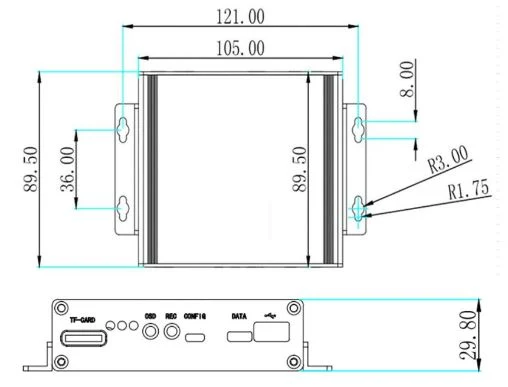

| Physical/Environment | Dimensions | 105x89.5x30mm |
| Weight | 248g |
| Working Temp | -20ºC~+65ºC |
| Electrical Parameters | Power Supply | DC12V |
| Power Consumption | <37dBm |
- TF-card slot - max. 128G, FAT32 format, auto recording and auto overrides.
- Power indicator
- OSD indicator
- REC indicator
- OSD button
- REC button
- Configuring port - connect to the USB programmer for adjusting frequency, bandwidth etc.
- Data port-RS232 (TX, RX, GND), TX to RX unidirectional.
- USB storage port - connect to external hard drive or SSD for video recording, FAT format, auto recording and auto overrides. Note: The USB port can only supply 5V/0.5A, external Power supply may required for hard drive and SSD.
- Antenna interface-SMAF
- Antenna interface-SMAF
- HDMI output- HD digital
- CVBS output -SD analog
- Power input interface-DC 12V
