ZKManet7771 vehicle-mounted base station equipment is a high-performance rack-mounted equipment specially developed for emergency communication. It integrates Mesh self-organized network, LTE private network, 4G public network, WI-FI, wired network and other communication modes into one, interconnection and interoperability with BD positioning, and can be powered by vehicle power supply; according to the respective functions and characteristics of each communication mode, it can access different business terminals to realize different functional requirements, and it can be used in different geographic environments, different network environments, and different demand environments, to It can be used in different geographic environments, different network environments and different demand environments to solve the communication problems at emergency sites. With the management software, it can remotely manage the same network equipment, and through the visualization platform, it can be used for video monitoring and command and scheduling. The product appearance is simple and generous, easy to use, powerful, reliable and so on.
Features
* Rack-mounted design for easy installation and use
* Support vehicle power supply and utility power
* Supports LTE private network handheld access
* WI-FI, support cell phone, laptop and other smart devices access
* Supports Mesh self-organizing network device access
* Supports 4G full network pass
* BD can be real-time positioning
* Supports remote management
| Model | ZKManet7771 |
| RF Parameters | Working Mode | Support MESH/3GPP R9 protocol |
| Frequency | MESH: 580MHz (customizable);
LTE: 1.4GHz (customizable) |
| Bandwidth | 2/5/10/20/40MHz |
| RF Channel | 4T4R |
| Output Power | 43dBm |
| Range | MESH: 10~15KM
LET: ≥2KM |
| Network Parameters | Network Capacity | 64 nodes; No less than 9 hops |
| Data Rate | LTE: uplink:>50Mbps; downlink:>15Mbps
MESH: 82Mbps |
| Encryption | AES128 |
| Public Network | 4G |
| Positioning | BD |
| WIFI | 2.4/5.8G |
| Physical/Environment | Dimensions | 430*360*89mm |
| Weight | <10kg |
| Working Temp | -40ºC~+65ºC |
| Electrical Parameters | Power Supply | AC220V/DC12V |
| Power Consumption | <100W |

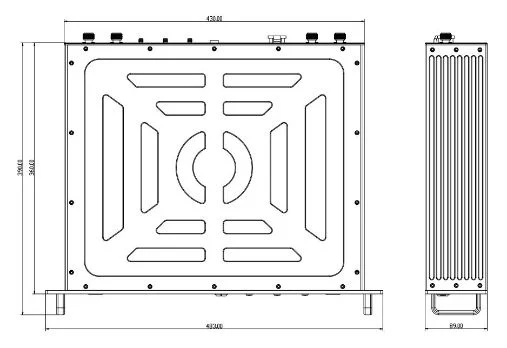

Dimension
Interface diagram
1- LTE Power Switch
2- 4G Card Slot
3- Network Port
4- Intercom Interface
5- MESH Signal Indicator
6- 4G Signal Indicator
7- LTE Signal Indicator
8- MESH Power Switch
9- MESH Antenna Interface 1
10- MESH Antenna Connector 2
11- Power Input Connector
12- Network Port
13- Serial port (spare)
14- BD antenna interface
15- 4G antenna interface
16- WI-FI Antenna Interface
17- LTE Antenna Interface 1
18- LTE Antenna Interface 2
