ZKManet2441UM is a compact and portable unmanned airborne device with high definition and stable image quality developed by our company. Adopting the current leading OFDM modulation technology, it can capture and transmit high-quality images in real time in non-line-of-sight (non-visual), high-speed movement, and encrypt the images and data during the transmission process. It supports transmission rates of 30Mbps and 30KM air-to-ground transmission, which is very suitable for long term and high-data-flow wireless transmission applications, such as surveillance/UAV/USV/robotics.
Features
* Small and portable, the shell is made of aluminum alloy with good thermal conductivity and impact resistance;
* Long transmission distance, line-of-sight transmission distance not less than 30km;
* IP data transparent transmission;
* Supports unicast, multicast, broadcast three kinds of propagation methods, any node can use these three ways to communicate with each other;
* Supports webcam access
| Frequency | 800MHz,1.4GHz ,2.4GHz |
| RF Bandwidth | 1.4MHz/3MHz/5MHz/10MHz/20MHz |
| RF Channel | 1T2R |
| Transmission power | 33dBm |
| Coverage distance | 30km |
| Working method | Point to point, point to others |
| Max Throughput | 30Mbps(Max) |
| Encryption | ZUC,SNOW3G,AES |
| Size | 103.5*61.5*22mm |
| Weight | 142g |
| Working temperature | -40ºC+65ºC |
| Power input | DC12V |
| Power consumption | <12W |
| Interface | RJ45*2,TTL*3 |

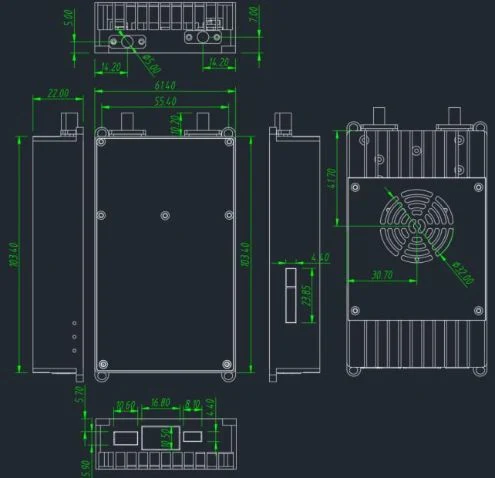

Dimension

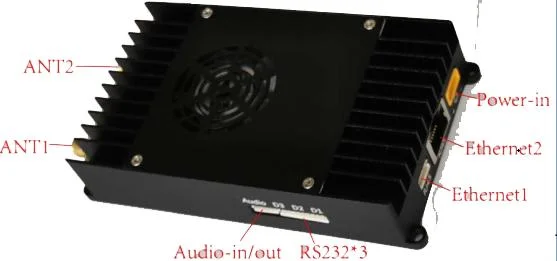

Interface Diagram

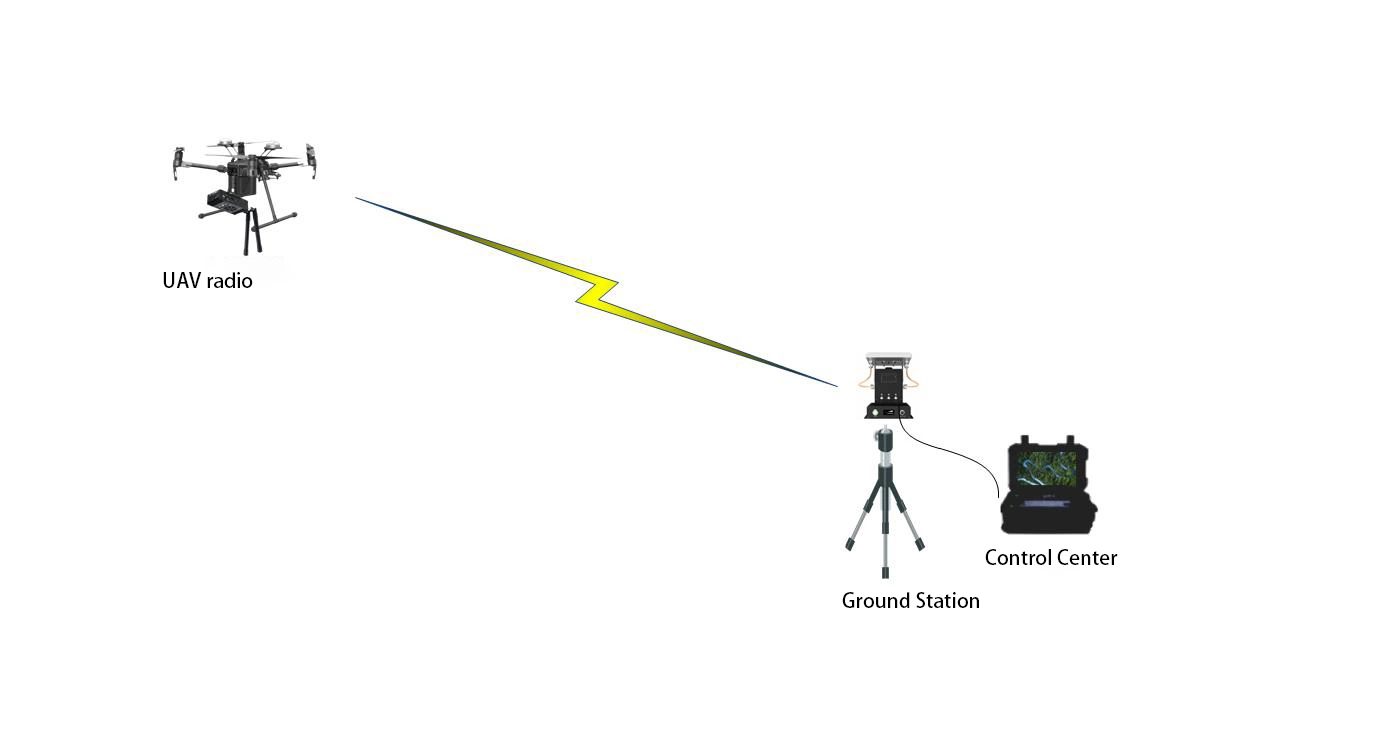

Application
