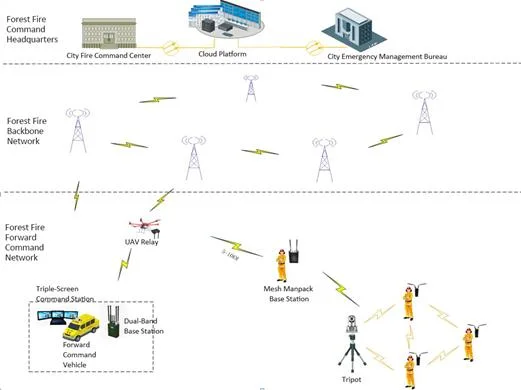

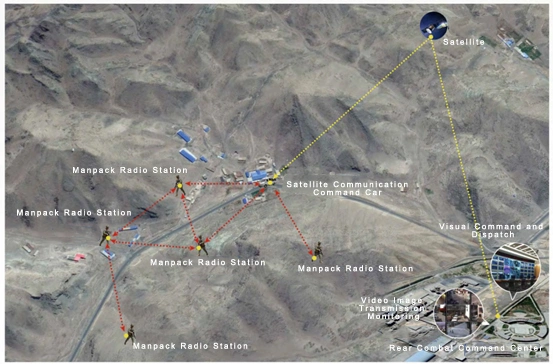

ZKManet2271UM is a high-power MESH self-organizing network radio with an integrated backpack design, providing a more stable emergency network and longer transmission distance in complex situations. The device comes with a data display screen, showing real-time device status and connection status. It can be worn by a single soldier, used as a relay with a tripod, or installed at fixed points. With a built-in lithium battery for power supply, the product features a sleek appearance, ease of use, powerful functionality, and high reliability.
* Supports two-way intercom
* Full transparent IP data transmission
* Supports 4G (with SIM card slot)
* Supports WIFI connection
* Supports GPS/BD
* Equipped with a display screen to show configuration information and connection status
* Working time ≥4h
* Rugged IP66
* Easy to operation
| Model | ZKManet2271UM | Brand | ZKMANET |
| RF Parameters | Frequency | 1.4GHz (300MHz-3.8GHz Customizable) |
| Bandwidth | 5/10/20/40MHz,20MHz (Typical) |
| RF Channel | 2T2R |
| Output Power | 20-High Power Customizable |
| Network Parameters | Network Size | 64 Nodes (128 nodes optional) |
| Data Rate | 82Mbps |
| Encryption | AES |
| Public Network | 4G/5G |
| WIFI | 2.4GHz |
| Range | 10-20km (LOS) |
| Physical/Environment | Dimensions | 320*200*75mm |
| Weight | 4.75kg (w/ battery) |
| Working Temp | -40ºC~+65ºC |
| IP Rating | IP66 |
| Electronic Parameters | Power Supply | 16.8V |
| Battery Capacity | 13Ah |
| Power Consumption | <80W |
| Other | Data Display | Support |
| Intercom | Support |
| Positioning | Support |
- Power push button
- PTT (Mic)
- MESH signal indicator
| SNR | Link Quality | Topology Color |
| SNR ≥ 17 | Excellent | Deep Green |
| 12 ≤ SNR < 17 | Good | Light Green |
| 7 ≤ SNR <12 | Fine | Yellow |
| 2 ≤ SNR <7 | Medium | Orange |
| -10 < SNR <2 | Bad | Red |
| SNR = -10 | Disconnected | N/A |
- LAN interface, RJ45
- Digital LCD indicator
- Configuration buttons (optional) - set frequency, bandwidth and distance parameters.
- Battery Indicator
- Battery butterfly clasp
- MESH antenna interface-2
- WIFI antenna interface-2
- 4G antenna interface
- GPS/BD antenna interface
- WIFI antenna interface-1
- MESH antenna interface-1
- Battery charging port
- Main body power input port
- Battery +/- contacts
- SIM card slot
